Description
Price: $149.99 - $187.19
(as of Oct 08, 2025 01:44:44 UTC – Details)
Product description
Summary
NMAxe-Gamma is an development board, with BM1370 ASIC, Wi-Fi, and Bluetooth solo lottery Miner. Perfect for solo miners aiming to hit a Bitcoin block, the NMAxe-Gamma is your golden ticket to potentially earning the 3.125 Bitcoin block reward. The NMAxe-Gamma increased the hashrate to 1.2TH/s, 2.4 times of NMAxe’s 500GH/s. More high-efficiency, rewarding experience makes it the ultimate lottery miner on the market.
Notice:
The hashrate is a fluctuating around 1000 GH/s(900~1200 GH/s). And the parameter should set to Frequency 625MHz, and Vcore 1200 mV.
It’s recommended that user should not set the parameter which the device power consumption exceed 30W, and besure the device temperature is below 60℃. (Excessive temperature is not conducive to the device long-term stable running.)
Main Features
Full graphic screens over 1.14 inch IPS screen.Bitmain’s BM1370 chip.Operates exclusively on 2.4 GHz Wi-Fi.Requires a 12V power supply with at least 3A.Support normal USB-PD supply, at least 9V/4A.Easy setup via the AxeOS portal.NMMiner Group Controller for monitoring, Can easily manage multiple devices, both NMMiner, NMAxe/Gamma.Support different Crypto cucrrency using SHA256d Solo mining, such as BTC/BCH/XEC/DGB.The device is compatible with Raspberry Pi 5-size structure and can be compatible with Raspberry Pi related shell devices.
Differences/Improvements from Bitaxe 601 Devices
Unique cooling design: Thermal silicone effectively realizes heat conduction between PCB and heat sink.Heat Dissipation optimization: a large copper coverd design, helps to dissipate heat from the BM1370 ASIC.Rich User interactive interface, support hashrate monitor, temperature monitor, and parameter monitoring map.The NMAxe also support the “SSL connections”, which solving the information security problems in some regions and countries.At the same time, the device supports “USB PD power supply”, so common mobile Type-C adapters can used to power the NMAxe.Besides, the portable power bank supplies power to the NMAxe devices. A regular 10000mAh power bank can provide power to NMAxe devices for over 1 hour. So, even with a portable power bank and WiFi hotspot, you won’t miss the opportunity to get a BTC block reward.NMMiner group controller, which can helps to manage NMMiner and NMAxe devices together, with the NMController can easy goto the AxeOS.From the Version 2.3.10, we combined the NMController with the AxeOS’s swarm, which can automatically scan and manage the NMMiner and NMAxe devices together.
Specifications
ASIC: BM1370 Master Chip: ESP32-S3R8, Xtensa32 dual core processor Hash Rate: 1000 ~ 1200 GH/s Wi-Fi: 802.11 b/g/n, up to 150Mbps Device Management: Web service Axe OS/NMController Power Interface: Type-C USB\DC2.0 Supply Mode: DC\PD3.0 DC adapter and PD charger are supported Power Supply: 12V / 3A (recommend) Power Consumption: 20~36W Display: 1.14 inch TFT-LCD ; 135*240;Full-color Fan: DC 5V/Dual bearing brushless Fan Heat Sink: 40*40*30mm Memory: 512KB SRAM; 8MB PSRAM; 384KB ROM; 16MB SPI Flash Dimensions: 85*56*70mm Operating Temperature: -20 ~ 70 ℃

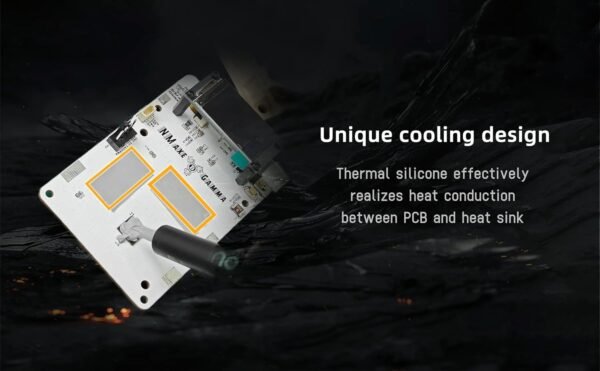

Unique cooling design
Thermal silicone effectively realizes heat conduction between PCB and heat sink.

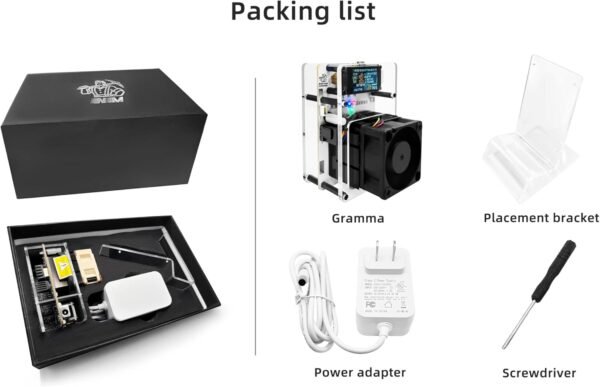

Packing list
The default packing list without selecting any accessories is as follows:
NMAxe x 112V * 3A DC 2.0 Power x 1
Add to Cart
Add to Cart
Price
$198.14$198.14 $187.19$187.19
— no data
Master Chip
ESP32-S3R8, Xtensa32 dual core processor ESP32-S3R8, Xtensa32 dual core processor ESP32-WROOM-32
Hash Rate
1000 ~ 1200 GH/s 1000 ~ 1200 GH/s 410 KH/s
Wi-Fi
✓
✓
✓
Bluetooth
✓
✓
✓
Display
1.14 inch TFT-LCD 1.14 inch TFT-LCD 2.8 Inch
NMAxe-Gamma is an development board, with BM1370 ASIC and ESP32-S3, with Wi-Fi, Bluetooth solo lottery Miner.
The NMAxe-Gamma increased the hashrate to 1.2TH/s, 2.4 times of NMAxe’s 500GH/s. More high-efficiency, rewarding experience makes it the ultimate lottery miner on the market.
The hashrate is a fluctuating around 1000 GH/s(900~1200 GH/s). And the parameter should set to Frequency 625MHz, and Vcore 1200 mV.
Embedded: Low cost, low maintenance, high availability, high reliability, low power( about 20W). Same power consumption with the NMAxe, but more energy-efficient.
Unique cooling design: Thermal silicone effectivelyrealizes heat conductionbetween PCB and heat sink.
